Automatic ceiling T- Grid making machinery

Basic Info

Model No.: ZT-006-27

Material: Steel

Additional Info

Packaging: 20ft container

Productivity: 10-30m/min

Brand: Zhongtuo

Transportation: Ocean,Land,Air

Place of Origin: China(mainland)

Supply Ability: 30 sets per month

Certificate: CE/ISO9001

Product Description

Automatic Ceiling T- Grid Making Machinery

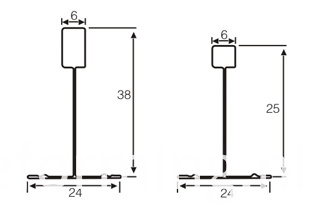

4545

T main Light Keel Roll Forming Machine is a strip of raw materials, through continuous cold rolling molding, production of complex cross-section profiles, which consists of decoiler, guide rack, forming hosts, calibration device, cut-off part, receiving station , composed of electrical control and so on. It is easy to use, easy to operate and so on.

123

Material
Processing material: colored steel plate, galvanized plate, or aluminum plate Material thickness: 0.4-0.6mm
Material hardness: 550 mpa---350 mpa
Formed width: 24mm
Forming speed: 20m/min
Technological process

Uncoiler-feeding system-Roll Forming Machine-cutting system-table

KEEL ROLL FORMING MACHINE

Uncoiler system
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:1500kg
Uncoiling width:300mm

Inner diameter: 450-550 mm

keel roll forming machine 2

Entry Beach
Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

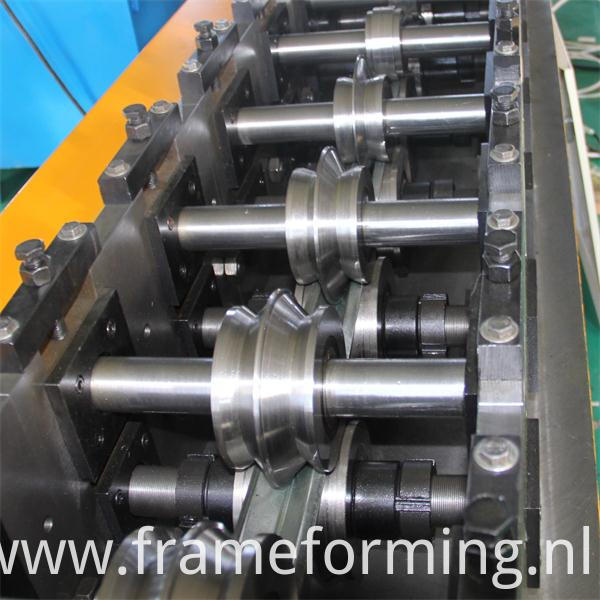

Main Roll Forming System
Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 3500 х800 х1400
Weight of main part: 3000kg
Voltage : 380 V/50HZ 3Phase or as your required
Roller fixer : middle plate
Frame : 450 H steel welded
Drive mode: gear
Frame thickness:30mm
Material of rollers:GCr12MoV, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 40mm
Number of rollers : 16 rollers

Main power: 3 kw

1

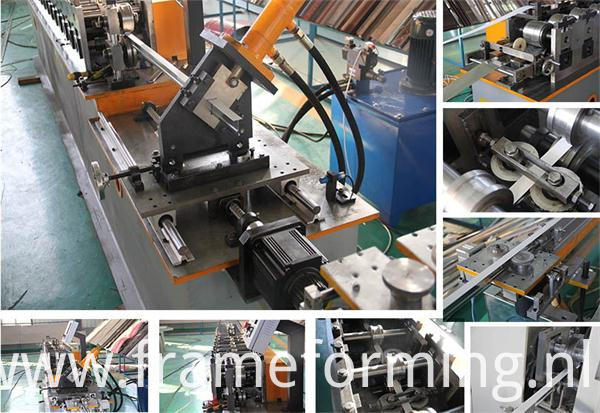

Shearing Mechanism
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power

Components:It contains one set of blade , one hydraulic tank and one cutter machine.

T-Bar roll forming machine 4

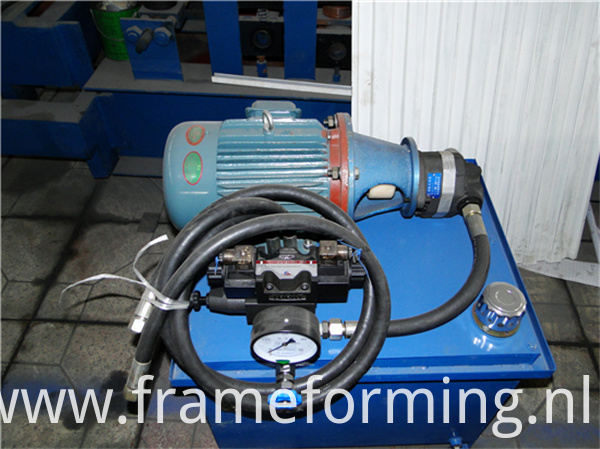

Hydraulic Station
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power: 3 kw

Hydraulic oil: 46 #

43324

Electric Control System
1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

2. Other electric element are Panasonic

keel roll forming machine 4

Counter
One counter gauges length, pulses, and decides length.
Omron encoder for length measurement.
Products receiving tables
It adopts welded steel and supported roller to transmit the products.
Accessories
1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs

machine tools

Payment terms
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit.
Warranty
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technician

4. Training time: one week (contains the time of installation and adjustment)

name card keel roll forming machine
