ceiling angle stud and track machine

Basic Info

Model No.: ZT-006-d

Voltage: 380V

Control System: PLC

Main Power: 3 Kw

Language: English And Chinese

Forming Speed: 25m Per Min

Decoiler Capacity: 1.5 Tons

Drive Type: Gear

Roller Number: 11

Diameter Of Shaft: 40 Mm

Name: Ceiling Angle Stud And Track Machine

Additional Info

Packaging: 20ft container

Productivity: 10-30m/min

Brand: Zhongtuo

Transportation: Ocean,Land,Air

Place of Origin: China(mainland)

Supply Ability: 30 sets per month.

Certificate: CE/ISO9001

Product Description

ceiling angle stud and track machine

Material
Processing material: colored steel plate, galvanized plate, or aluminum plate Material thickness: 0.4---0.8mm
Material hardness: 550 mpa---350 mpa
Forming speed: 25m/min
Technological process

Uncoiler-feeding system-Roll Forming Machine-cutting system-table

ceiling angle stud and track machine

Uncoiler system
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity:1500kg
Uncoiling width:300mm

Inner diameter: 450-550 mm

ceiling angle stud and track machine

Entry Beach:
Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming System:
Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 3000 х800 х1400
Weight of main part: 3000kg
Voltage : 380 V/50HZ 3Phase or as your required
Roller fixer : middle plate
Frame : 450 H steel welded
Drive mode: gear
Material of rollers:GCr12MoV, surface hard chromium plating.
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 40mm
Number of rollers : 10 rollers

Main power: 3 kw

ceiling angle stud and track machine

Shearing Mechanism:
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12 quenched
Power supply : hydraulic power

Components:It contains one set of blade , one hydraulic tank and one cutter machine.

ceiling angle stud and track machine

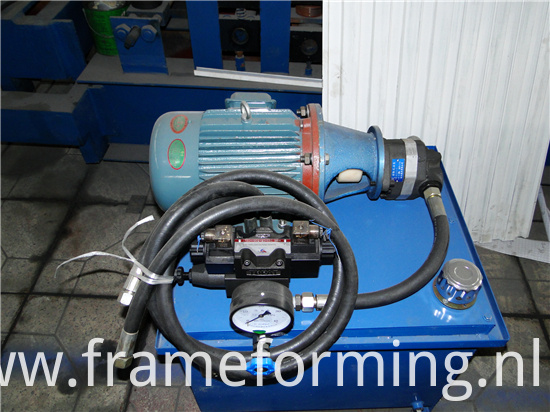

Hydraulic Station:
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power: 5.5 kw
Hydraulic oil: 46 #

Electric Control System

ceiling angle stud and track machine

Feature:
1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Panasonic
Counter :
One counter gauges length, pulses, and decides length.
Omron encoder for length measurement.
Products receiving tables
It adopts welded steel and supported roller to transmit the products.

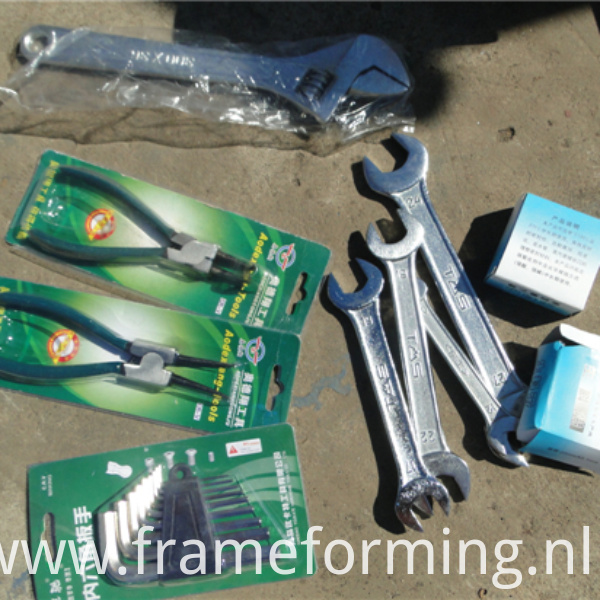

Accessories :
1.Easy damaged parts: conk 2 pcs, fuse-link 4 pcs
2. Rubber mat 1 pcs;

3.Bolt spanner 1 pcs.

ceiling angle stud and track machine

Warranty:
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.
3. Need one technician.

4. Training time: one week (contains the time of installation and adjustment)

ceiling angle stud and track machine

Looking for ideal Ceiling Angle Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Stud and Track Roll Forming Machine are quality guaranteed. We are China Origin Factory of Ceiling Angle Roll Forming Machine. If you have any question, please feel free to contact us.
