Upright pillar making machine

Basic Info

Model No.ZT-002

BrandZHONGTUO

TypeCold Bending Equal Channel

ShapeC Channel

PerforatedPerforated

Length6-19m

Drive ModeGear Box

Speed15m/min

Matching MaterialG.I Or M.S

Material Thickness Range1.2-1.8mm

Main Motor Power15kw

Hydraulic Station Power7kw

Quantity Of StandsAbout 16

Controlling SystemPLC

Total Weight8 Tons

VoltageCustomize

Additional Info

PackagingAs the Customer's Requirement

Productivity5 set

TransportationOcean,Land,Air,as customer requirem

Place of OriginChina

Supply Ability30 sets/month

CertificateCE\ISO9001

Payment TypeL/C,T/T,D/P,Western Union

IncotermFOB

Delivery Time30 Days

Product Description

Upright pillar making machine for racking system

Manufactured from customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings. This range of rack upright protectors is suitable for us in temperatures as low as -40 degrees and is fully recyclable and non toxic. With various types punching holes, it is beautiful in appearance and light in weight. Meanwhile it can help you do easy fixing. Here are some pictures for your reference:

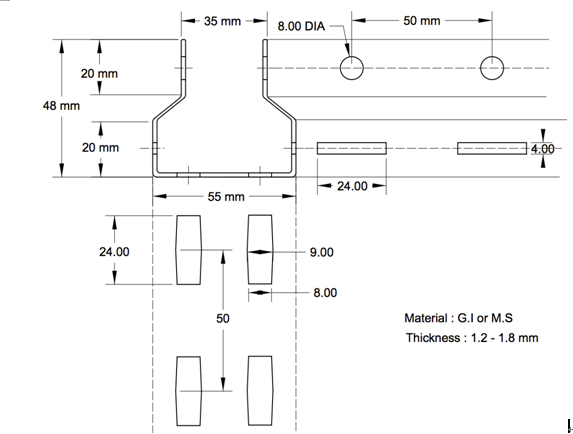

upright drawing profile

For the Racking Roll Forming Machine design plan, we use the following elements and parameters.
MACHINE COMPONENTS:
1. Hydraulic decoiler 3 ton 1 set
2. Punching system 64 ton 1 set
3. Coil feeder 1 set
4. Leveling Machine 1 set
5. Roll Forming 1 set
6. Hydraulic Cutting 1 set
7. PLC Control System 1 set
8. Hydraulic Station 1 set
9 .Run-out Table-(Un-powered) set

For some key elemetns, here are some introductions:


1. Hydraulic Uncoiler:
3 Ton passive de-coiler with brake device
Outside diameter of coil: 550mm

Inside diameter of the coil: 450mm

hydraulic decoiler


2. Leveling system and coil feeder:

After punching holes, the coil feeder can help feed the coil to the machine smoothly and feed coil at same working speed.

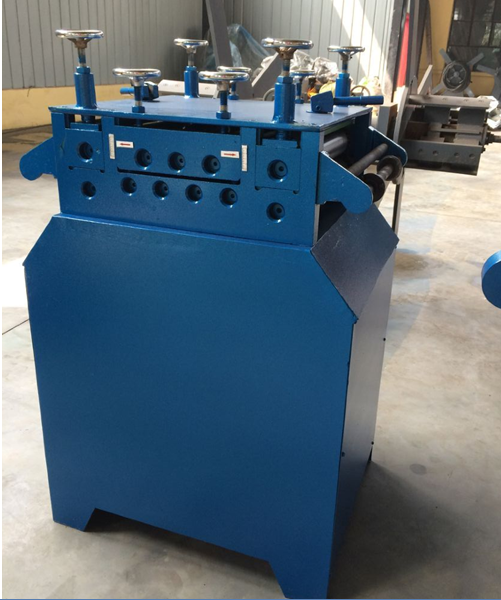

leveling system


3. Main forming machine of Racking Frame Roll Forming Machine :
1) Forming steps: 18 steps
2) Outer diameter: 70mm
3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm
4) Roller information:
A. Raw material: GCr12MoV
B. Quenched degree: 56-58°C
5) Shaft material: 45# steel with heat treat and hard chrome plated on the surface
6) Main motor power: 18.5kw, Reducer ratio: 1:14,
Reducer Type: Hardened reducer

upright pillar machine

For the runout table:

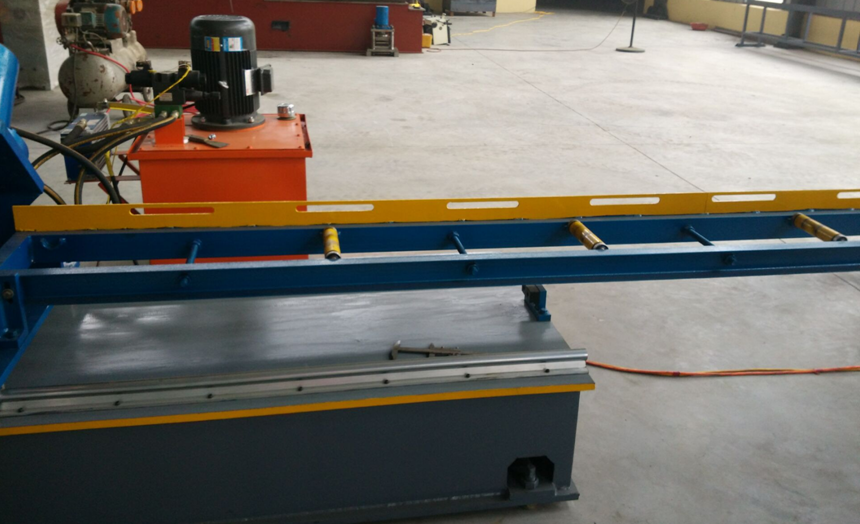

rounout table


And for other pallet rack roll forming machines, we also can provide you more detailed information.


Looking for ideal Warehouse Pillar Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Upright Pillar Machine are quality guaranteed. We are China Origin Factory of Sliding Door Track. If you have any question, please feel free to contact us.
