Upright Sigma Profile For Warehouse Making Machine

Basic Info

Model No.ZT-002

BrandZHONGTUO

TypeCold Bending Equal Channel

ShapeC Channel

PerforatedPerforated

Length6-19m

Drive ModeGear Box

Speed15m/min

Matching MaterialG.I Or M.S

Material Thickness Range1.2-1.8mm

Main Motor Power15kw

Hydraulic Station Power7kw

Quantity Of StandsAbout 16

Controlling SystemPLC

Total Weight8 Tons

VoltageCustomize

Additional Info

PackagingAs the Customer's Requirement

Productivity5 set

TransportationOcean,Land,Air,as customer requirem

Place of OriginChina

Supply Ability30 sets/month

CertificateCE\ISO9001

Payment TypeL/C,T/T,D/P,Western Union

IncotermFOB

Delivery Time30 Days

Product Description

Upright Sigma Profile For Warehouse Making Machine

Upright sigma profile now it is quite popular for making pillar of upright or support, normally there are heavy duty type. Normally speaking, it is used together with the beam box. The material thickness is normally from 1.5 to 3.5 mm. The following drawing profile is for your reference.

pillar drawing profile 34

Here is the Upright Racking Roll Forming Machine working process for your reference:

Hydraulic De-coiling---Material guiding---Levelin---Hydraulic punching---Roll forming---Length sizing---Cutting the panel---Panels to the collecting platform---Finish

working process

Main composition of the upright pillar storage rack Roll Forming Machine

The machinery line consists of 5.0 tons hydraulic de-coiler , material guiding , leveling , hydraulic punching , forming roller system, hydraulic cutting system ,run-out table, control cabinet with PLC.
Technical parameters:

• Matching material: G.I or M.S
• Material thickness range:1.2-1.8mm
• Main motor power: 15kw
• Forming speed:1-3m/min(include punching and cutting time)
• hydraulic station power:22kw
• Quantity of stands:about 16
• Shaft Material and diameter:¢75mm, material is 40CR
• Material Of The Stations: Guide rail style
• Tolerance:3m+-1.5mm
• Way Of Drive:1.5 inch single chain
• Controlling system:PLC
• Total weight:about 8 Tons
• Voltage: 380V/ 3phase/ 50 Hz
• Size of the machine:L*W*H 11.5m*1.5m*1.2m
• Material of forming rollers:Gcr 15, coated with chromed treatment
• Material of cutter blade:Cr 12 mould steel with quenched treatment 58-62

Cutting and the Control Cabinet

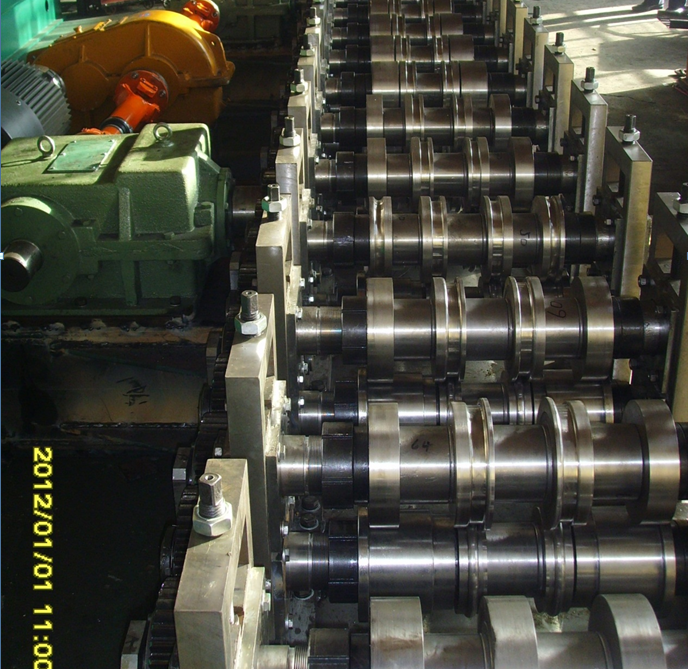

main roll forming machine

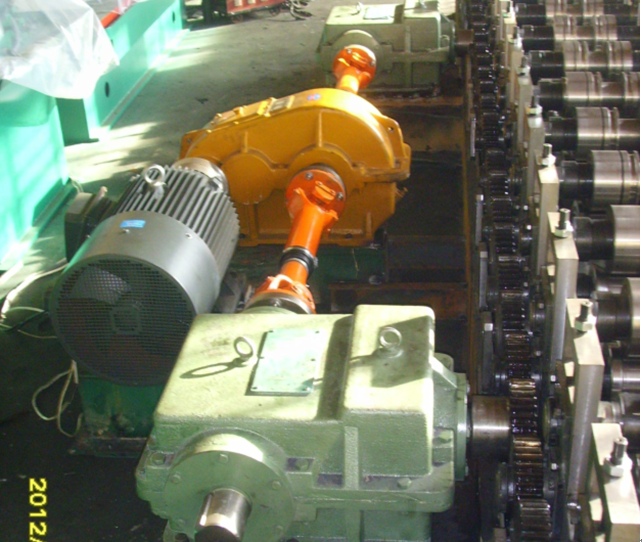

main roll forming machine 2

Cutting of upright pillar Racking Frame Roll Forming Machine:
1) Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.
2) Material of blade: GCR12with heat treatment
3) Length measuring: Automatic length measuring
4) Tolerance of length: +/- 1.5mm
shearing of upright pilalr
Control Box: Brand Panasonic
1) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)
2) Automatic length measurement:
3) Automatic quantity measurement
4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
5) Length inaccuracy can be amended easily
6) Control panel: Button-type switch and touch screen

7) Unit of length: millimeter (switched on the control panel)



Packing List details
1) 5 ton hydraulic de-coiler: 1 set
2) Main roll forming machine:1 set
3) Hydraulic punching system: 1 set
4) Hydraulic cutting system: 1 set
5) Hydraulic station: 1 set
6) Control box: 1 set
7) Hydraulic cutting: 1 set
8) Run-out table: 1 set
9) Punching mould: 1 set
10) Cutting mould: 1 set

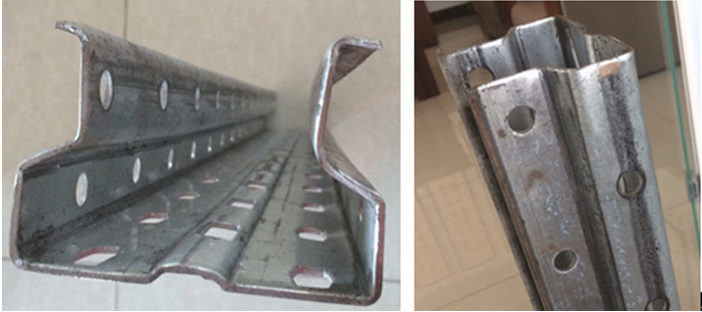

Here are some finished product pictures for your reference:

finished products


Looking for ideal Upright Sigma Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Sigma Making Machine are quality guaranteed. We are China Origin Factory of Ware House Pillar Making Machine. If you have any question, please feel free to contact us.
