Warehouse Storage Rack Upright Roll Forming Machine

Basic Info

Model No.ZT-002

BrandZHONGTUO

TypeCold Bending Equal Channel

ShapeC Channel

PerforatedPerforated

Length6-19m

Drive ModeGear Box

Matching MaterialG.I Or M.S

Main Motor Power15kw

Hydraulic Station Power7kw

Quantity Of StandsAbout 16

Controlling SystemPLC

Total Weight8 Tons

VoltageCustomize

Speed15 M/min

Material Thickness Range1.2-1.8 Mm

Additional Info

PackagingAs the Customer's Requirement

Productivity5 set

TransportationOcean,Land,Air,as customer requirem

Place of OriginChina

Supply Ability30 sets/month

CertificateCE\ISO9001

PortTianjin

Payment TypeL/C,T/T,D/P,Western Union

IncotermFOB

Delivery Time30 Days

Product Description

Warehouse Storage Rack Upright Roll Forming Machine

Warehouse storage rack upright roll forming machine for making the storage rack for upright pillar system. This machine is manufactured according to customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings. This range of rack upright protectors is suitable for us in temperatures as low as -40 degrees and is fully recyclable and non toxic. With various types punching holes, it is beautiful in appearance and light in weight. Meanwhile it can help you do easy fixing. Here are some pictures for your reference:

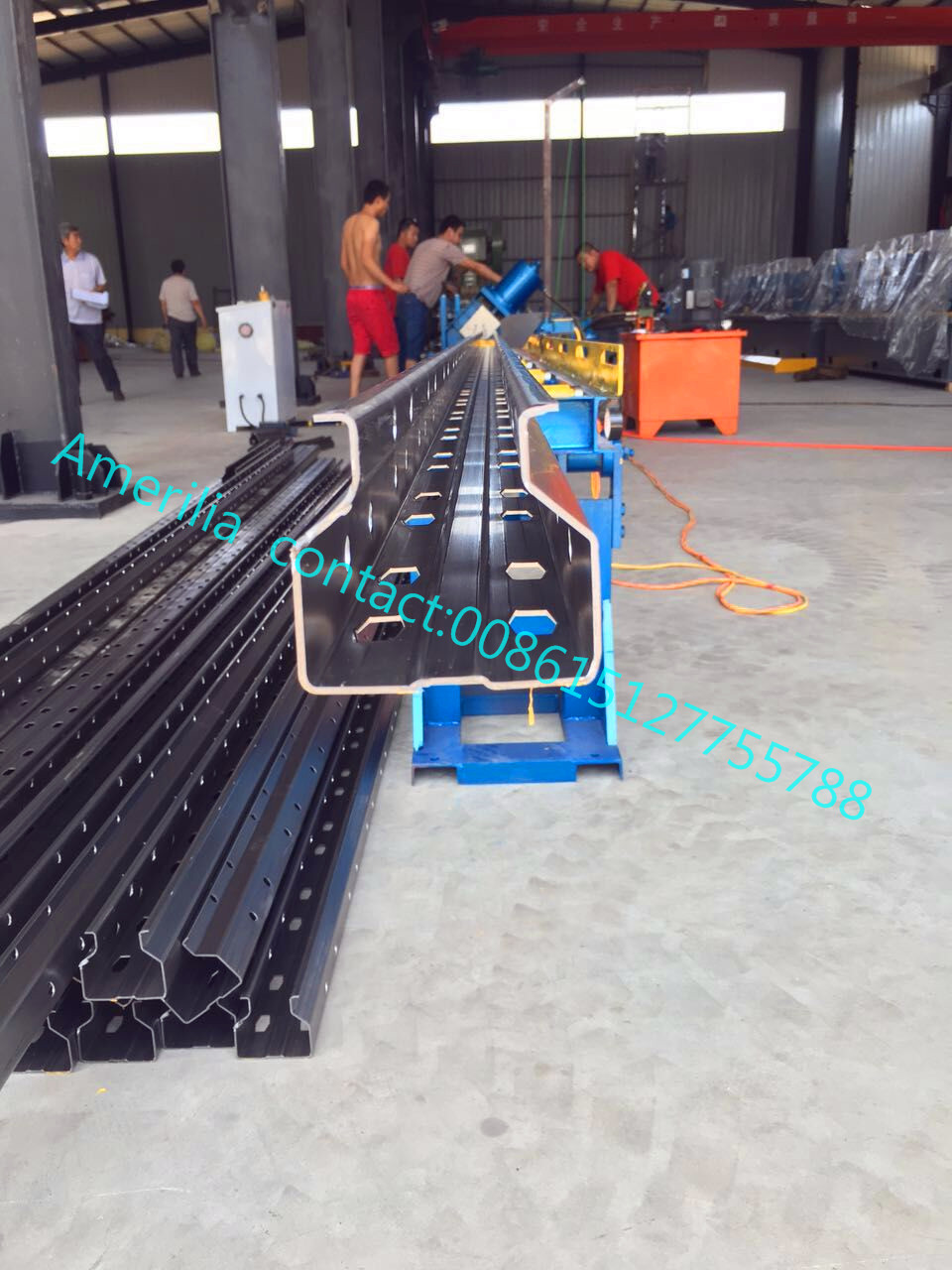

90 upright pillar machine

upright pillar making machine5

For the metal storage rack making shelf roll forming machine design plan, we use the following elements and parameters.
MACHINE COMPONENTS:
1. Hydraulic decoiler 3 ton 1 set
2. Punching system 64 ton 1 set
3. Coil feeder 1 set
4. Leveling Machine 1 set
5. Roll Forming 1 set
6. Hydraulic Cutting 1 set
7. PLC Control System 1 set
8. Hydraulic Station 1 set
9 .Run-out Table-(Un-powered) set

For some key elemetns, here are some introductions:


1. Hydraulic decoiler:
3 Ton passive de-coiler with brake device
Outside diameter of coil: 550mm

Inside diameter of the coil: 450mm

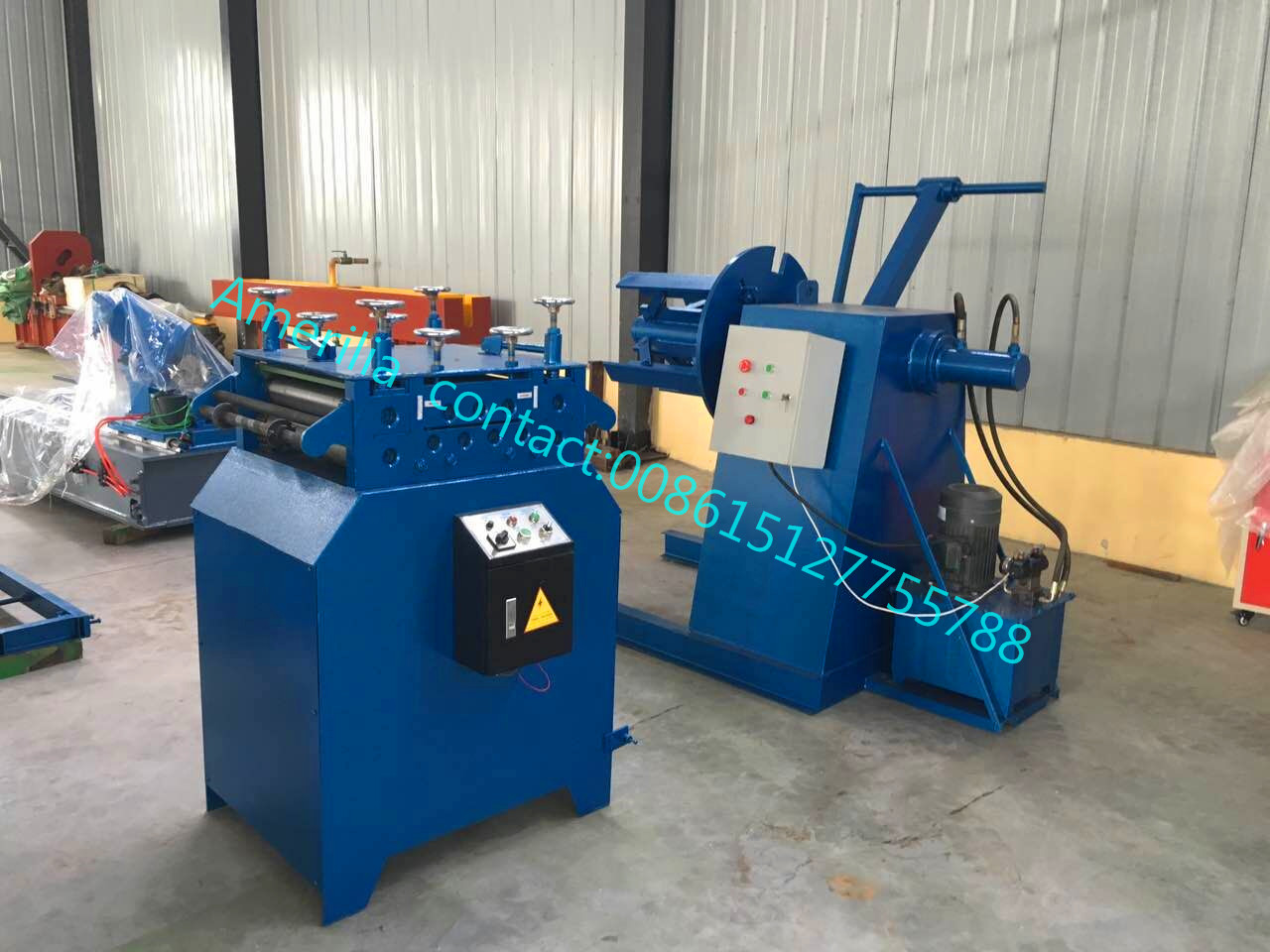

hydraulic decoiler


2. Leveling system and coil feeder:

After punching holes, the coil feeder can help feed the coil to the machine smoothly and feed coil at same working speed.

upright pillar making machine1


3. Main forming machine of metal storage rack making shelf roll forming machine:
1) Forming steps: 18 steps
2) Outer diameter: 70mm
3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm
4) Roller information:
A. Raw material: GCr12MoV
B. Quenched degree: 56-58°C
5) Shaft material: 45# steel with heat treat and hard chrome plated on the surface
6) Main motor power: 18.5kw, Reducer ratio: 1:14,
Reducer Type: Hardened reducer

upright pillar making machine7

For the runout table:

upright pillar making machine9


Our Metal storage machines has been sold to more than 40 coutries. Before delivery, we will do the very strictly testing. By this way, we can make sure the the machine working ability 100% no problem. Meanwhile the tested finished prodcut could be delivered at the same time, there is no waste.

upright loading pictures

Customer from all over the world

Looking for ideal Storage Rack Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Ware House Storage Rack Forming Machine are quality guaranteed. We are China Origin Factory of Storage Rack Upright Roll Forming Machine. If you have any question, please feel free to contact us.
