Villa used durable color roofing tile making machine

Basic Info

Model No.cnzt002

BrandZHONGTUO

Bottom Glue Spraying Equipment4000*1350*850mm(L*W*H)

StructureChannel Steel ,welded

Conveying DeviceReciprocating Chain Conveys

Air CompressorOne Set

High-pressure Airless Hand GunFour Sets

Drying RoomTwo Sets

Surface Glue Spraying EquipmentOne Set

Second Drying Room Equipment ComponentOne Set

Whole Machine Power130kw

Additional Info

Packagingas customer requirem

Productivity600 pieces an hour

TransportationOcean,Land,as customer requirem

Place of OriginChina

Supply Ability5 set/3 month

CertificateCE, ISO9001

Payment TypeL/C,T/T,D/P,D/A

IncotermFOB

Delivery Time90 Days

Product Description

Villa used durable color roofing Tile Making Machine

Villa used durable color roofing tile making machine is speciallly designed for villa or high end roofing tiles house. The stone coated tile has beautiful appearnace and durable water-resistance ability. Here some pictures for your reference:

Villa Used Roof Tile

1. Automatic bottom glue spraying equipment (closed type)
1.1 Outside Dimension:4000*1350*850mm(L*W*H)
1.2 Structure: Channel steel ,welded
1.3 Conveying device: Reciprocating chain conveys
1.4 Adsorption type dust removal equipment:1 set
1.5 Air compressor:1 set,7.5kw,air output 1m³/min
1.6 D46 high-pressure airless spraying system:1 set(German technology)
1.7 Automatic high-pressure airless spray gun:1 set(Japan technology )
1.8 High-pressure airless hand gun:1 set(Japan technology )
1.9 Standard 15 meters Germany imported high pressure tube without gas ,Under the highest pressure is 20Mpa

1.10 Stainless Steel Barrel for 100L:One piece

stone coated roofing tile machine


3.First drying room:1 set
3.1Outside Dimension :25000*800*1200mm(L*W*H)
3.2Structure:carbon steel welded
3.3Frame type heat preservation wall:fill up with heat preservation material which is bended with 1mm carbon steel
3.4Automatic temperature controller:10 sets,Range of adjustable temperature:0-160°
3.5 Infrared fluorescent tube:50 pcs

3.6 Conveying device: Reciprocating chain conveys

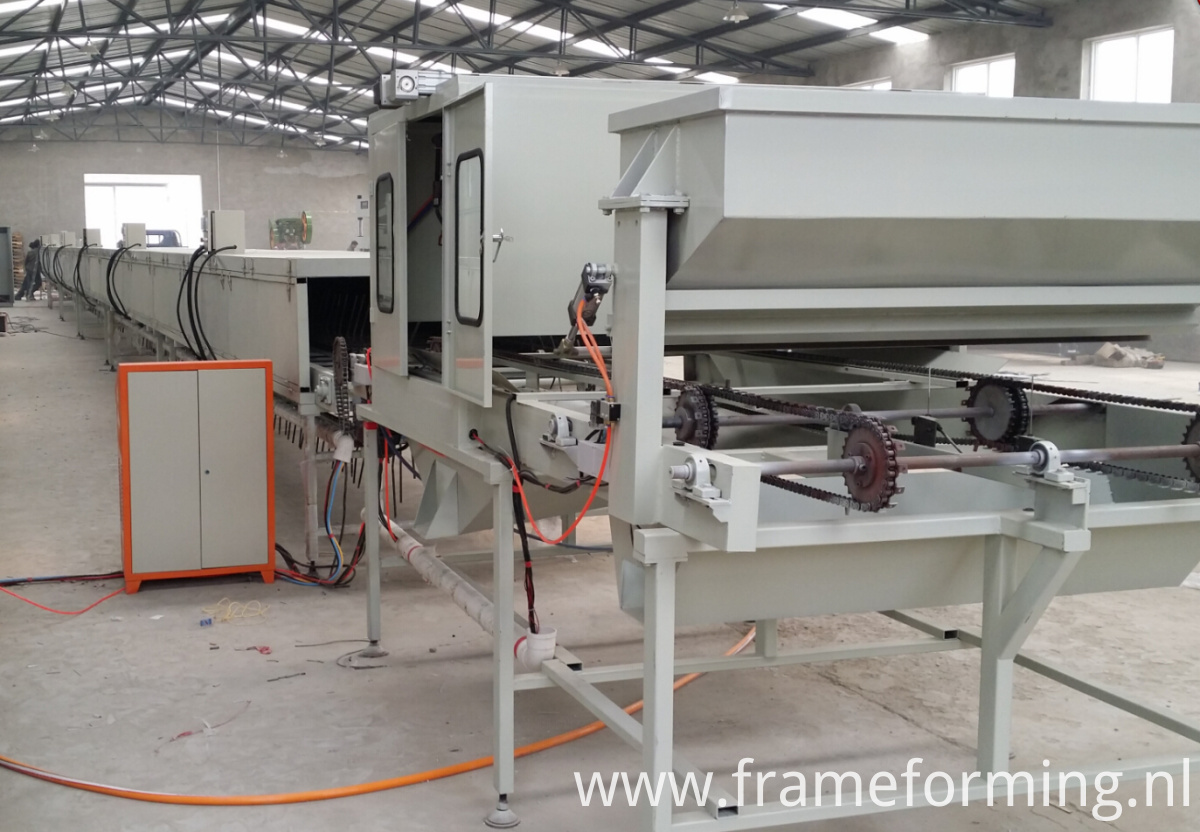

spraying room 1

5.Second drying room equipment component
5.1 Outside Dimension :30000×850×700mm(L*W*H)
5.2 Structure:carbon steel welded
5.3 Frame type heat preservation wall:30 Meters. fill up with heat preservation material which is bended with 1mm carbon steel
5.4 Automatic temperature controller:2 sets(Range of adjustable temperature:0-160°)
5.5 Infrared fluorescent tube: 50 pcs
5.6 Conveying device: Reciprocating chain conveys,30 meters
5.7 Total equipment matches total control station 1 set (Control system)
5.8 Productivity:3-6m/min Calculate as 1.2m per piece, eight hours, produce 1500pcs every day

5.9 Whole machine power:130kw

second drying room

5.Spare parts:
Infrared heating tube:10 pieces
nozzle:2 pieces


Looking for ideal Villa Used Roof Tile Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Color Roofing Tile Making Machine are quality guaranteed. We are China Origin Factory of Metal Stone Tile Making Machine. If you have any question, please feel free to contact us.
